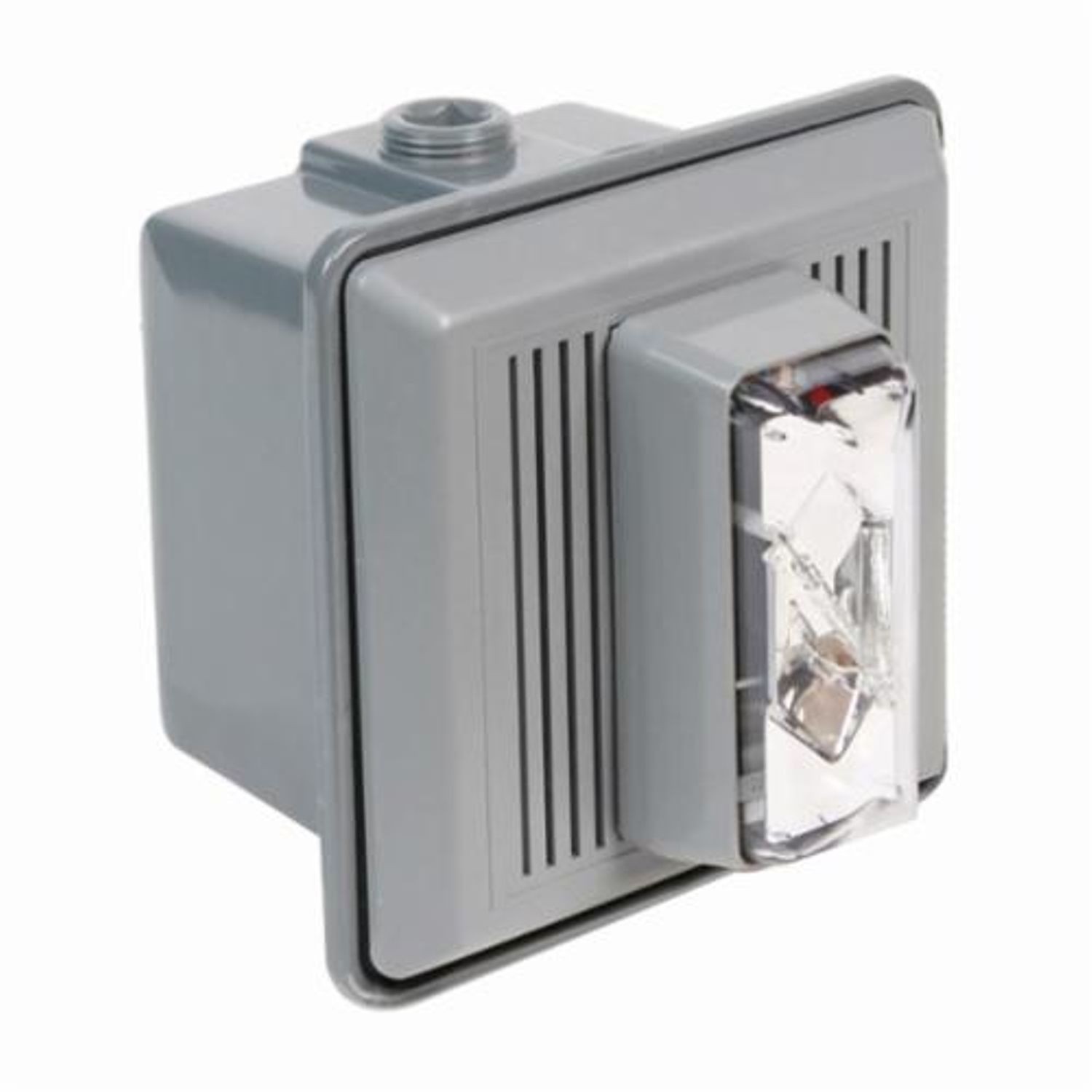

Edwards Signaling™ 868STRC-AQ 860 Industrial Electronic Horn/Strobe, 24 VAC/VDC, Xenon Lamp, 100/90 dB Sound, Surface Mount, Clear Lens, UL 1638, UL 464

Edwards Signaling™ 868STRC-AQ 860 Industrial Electronic Horn/Strobe, 24 VAC/VDC, Xenon Lamp, 100/90 dB Sound, Surface Mount, Clear Lens, UL 1638, UL 464
Choose Favorites List

Edwards Signaling™ 868STRC-AQ 860 Industrial Electronic Horn/Strobe, 24 VAC/VDC, Xenon Lamp, 100/90 dB Sound, Surface Mount, Clear Lens, UL 1638, UL 464

SKU: EDW868STRC-AQ
Edwards 860 Series xenon strobe beacons with horns are bright, low current, high decibel, combination signals designed for use where a distinctive visual or audible signal is required. The housing is made of gray, engineered thermoplastic. The strobe and horn can be operated independently. The 867STR (indoor) and 868STR (outdoor) Series can be surface mounted on the supplied surface box. The 869STR and 869DSTR Series beacons can be flush mounted. They are designed to mount in a standard 4 in (102mm) square electrical box with extension ring (total min. depth of 3 in (76mm) not supplied.) The 869DSTR Series is Diode Polarized for use in electrically supervised circuits.
0.0 out of 5
0 reviews | Write a Review
Price options loading, please wait...
Your Warehouse: Huntington |
Documents Product Specifications Reviews Videos
Series: 860
Tone Frequency: 50/60 Hz
Sound Level: 100/90 dB at 1 m/10 ft
Lamp Type: Xenon
Mounting Type: Surface
GTIN: 00782640239469
Flash Rate: 60 fpm
Dimensions: 5-1/2 in H x 5-1/2 in W x 5/8 in D
Type: Industrial
Voltage Rating: 24 VAC/VDC
Light Output: 150 cd
Temperature Rating: -31 to 150 deg F
Lens Color: Clear
Amperage Rating: 0.239/0.218 A
Material: Thermoplastic
UPC: 782640239469
UNSPSC: 46171602
Minimum Order Qty: 1
Order Interval: 1
Vendor SKU: 868STRC-AQ
Application: For Outdoor Use
Standard & Approvals: RoHS Compliant, UL 1638, UL 464 Listed
Manufacturer: United Technologies
Brand: Edwards Signaling™
Features & Benefits:
  • Low current draw, bright, high decibel
  • Terminals for easy wiring
  • Operating indoor temperature range at 85 percent relative humidity at 86 deg F (30 deg C), 32 deg F to 120 deg F (0 to 49 deg C) variable ambient temperature
  • Operating outdoor temperature range at 95 percent relative humidity at 86 deg F (30 deg C), -31 deg F to 150 deg F (-35 deg C to 66 deg C) variable ambient temperature
  • Combination signals designed for use where a distinctive visual or audible signal is required
